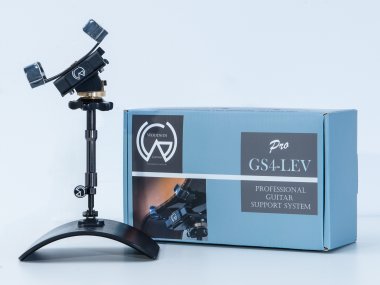

Woodside Guitars GS4-PRO Guitar Support, with Accessories Introducing the GS4-PRO
The same great features of the Woodside GS4-LEV in a professional version * Includes all custom fitting acessories * Exclusive professional grade “locking” collar * New ultra-low support height option • Quick On / Off Lever Locking • Ball & Socket Angle Adjustment • Even-grip Pivoting Grippers • Set and Forget Personalized Fit
Click Here to download the new GS4 manual.
Woodside’s Exclusive Flip-Lock Mechanism
Once adjusted for a specific guitar, attaching and detaching is a “snap”! No more fumbling around with suction cups or twisting screws endlessly - attaches and detatches in mere seconds! Quick, convenient, and reliable.
Woodside’s Unique Pivoting-Gripper System
A casual observation of the cradle gripping system suggests that the grippers are parallel to one another, and likewise the top and back of the guitar are parallel. But in actual real-world use, any manufactured product - even the guitar itself, as well as the guitar support - will have minor differences in the span between the two different pairs of grippers. Our sophisticated system allows the Grippers to “float” - providing superior gripping strength with minimal pressure. This also allows the Woodside system to work with elevated fingerboard guitars and other non-parallel top/back instruments.
Woodside’s Ball & Socket Cradle Mount
Allows precise and verstatile positioning options - “Set it and Forget It”
Another innovation exclusive to the Woodside, and yet essential in providing the most intimacy and personalized positioning, is the ball & socket mount between the cradle and support pillar.
Providing 0-13° off neutral position in any axis, the guitar can be angled in countless configurations.
Once the player’s comfort zone is found, simply lock the retaining cup and the position will be held for the next session - even if the support is removed from the guitar.
New - Exclusive to “Pro” - Professional Grade Locking Collar
The new, professional glade locking collar is ultra precise, and extremely stable. Building upon the Woodside flexibility - such as the freedom of rotation while playing the guitar - and adding even more stability to the support is the “Pro” Locking Collar System.
Also, the newly designed collar extenders make large height adjustments even easier and more convenient.
Like never before, flexibility and stability come together. The Woodside brings the guitar and guitar player ever closer, enabling the player to achieve their full artistic potential.
The GS4-LEV Pro comes with the widest range of fitting setup accessories and tools needed for setup.
Secure, stable, adaptable. Your music, your guitar, your playing position!
Included Accessories
The widest range of setups is possible with the PRO package - enabling the user to experiment fully and find their ideal playing position
• Standard Ball End Rod
• Stubby Ball End Rod
• Standard Collar Extender
• Long Collar Extender
• "Pro" Locking Collar
• Standard Extender Rod
• "Shorty" Extender Rod
• 15 Degree Angle Block
• 25 Degree Angle Block
Specifications
• Clamping Width - 80 - 113 mm
• Height Range - 7-24 cm (top of leg rest to cradle/guitar surface)
• Angle Range – 13° in all directions (Ball & Socket)
• Angle Bias - 14° plus 15° or 25° with Angle Block (highly configurable) • Weight: Approx 180 g
• Materials: Anodized aluminum, brass, stainless steel, PC/ABS Injection Molded
• Folded Size (for stowage): 130 x 100 x 60 (high)
(Approximate and subject to change without notice)
